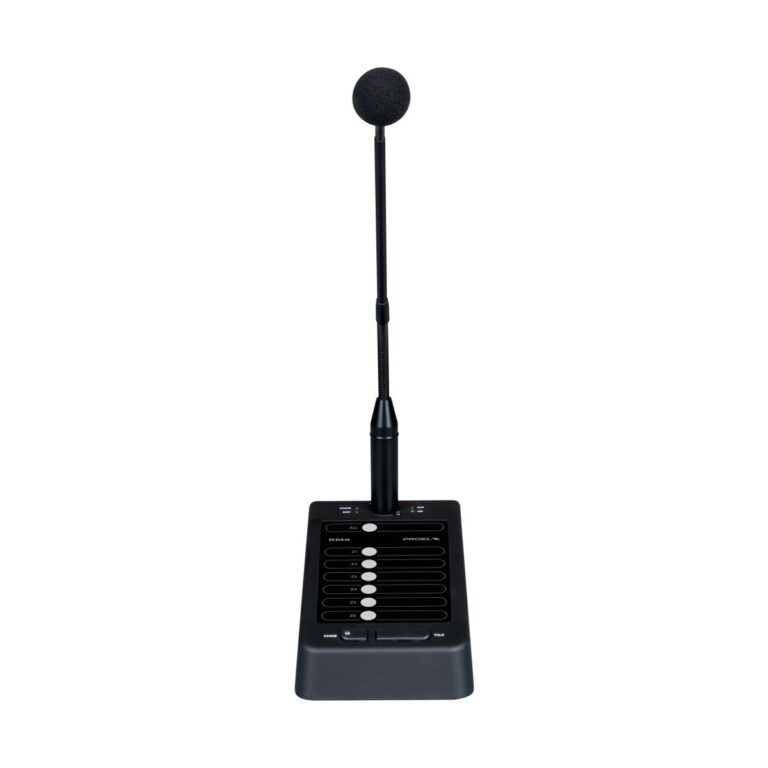

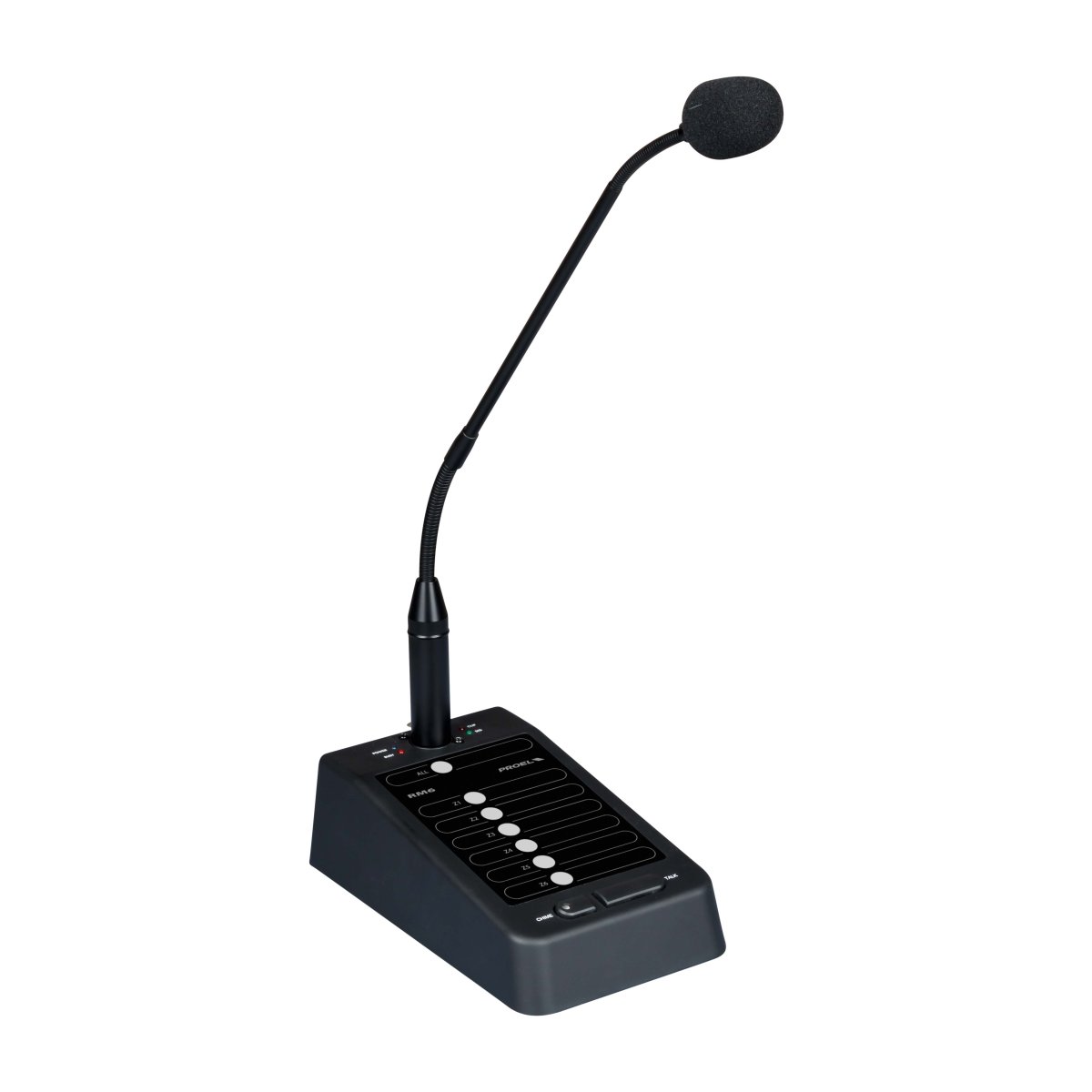

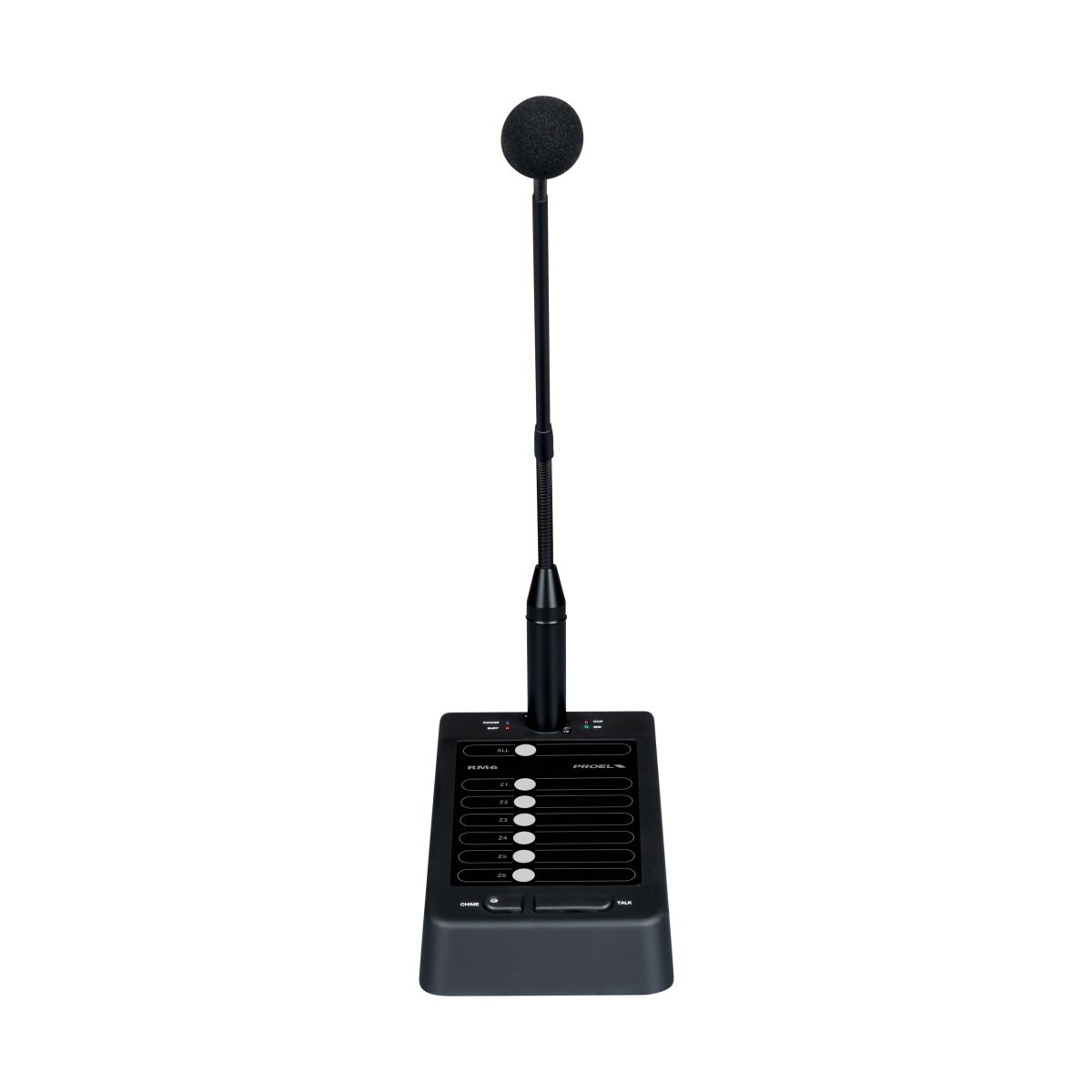

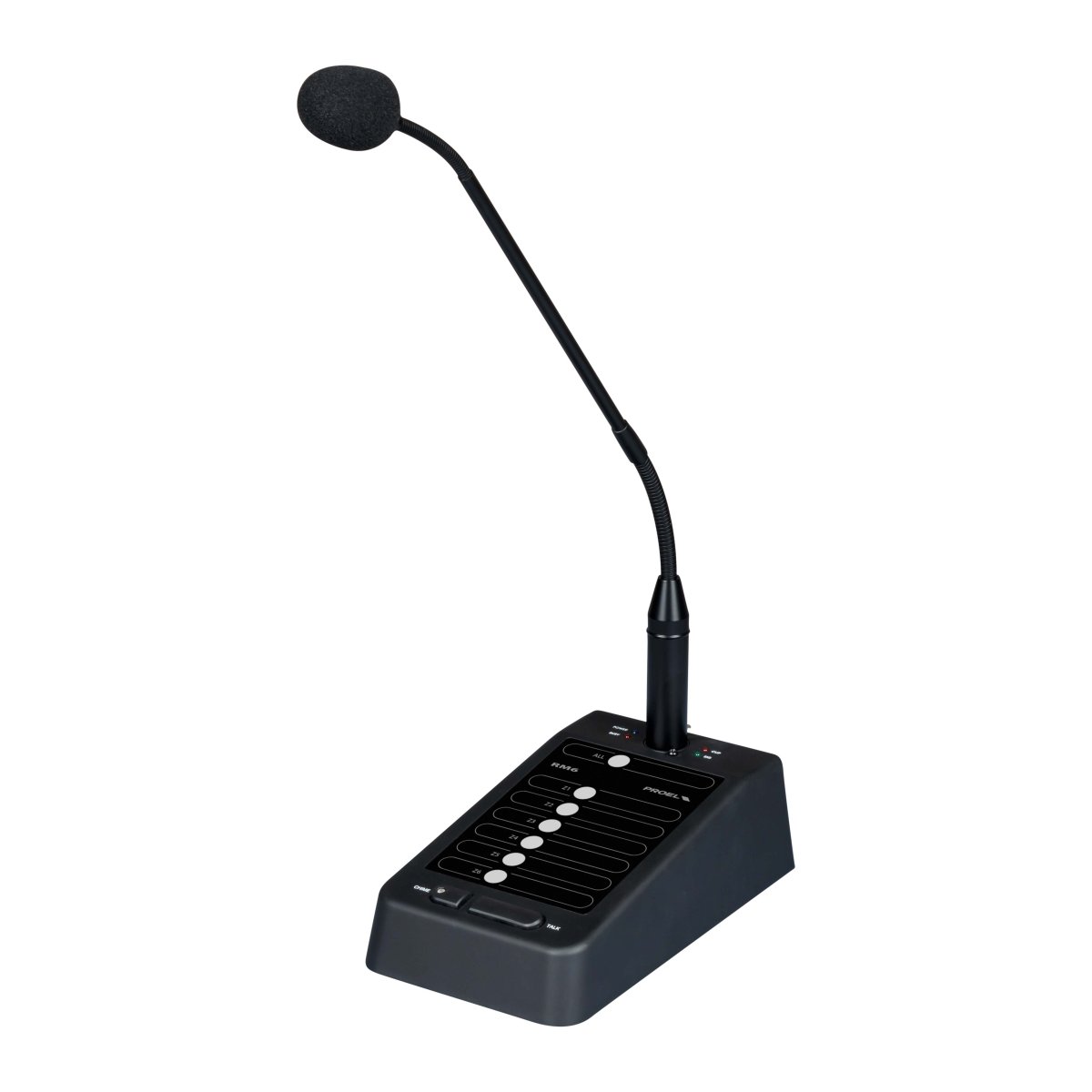

PA RM6

Base Microfonica a zone con avviso di chiamata per ATMP480Z6XL

Paging Base for announcement on 4 zones, designed to be used with the ATMP48Z6XL amplifier. It can make a microphone call on single zones, on a group of zones or on all zones.

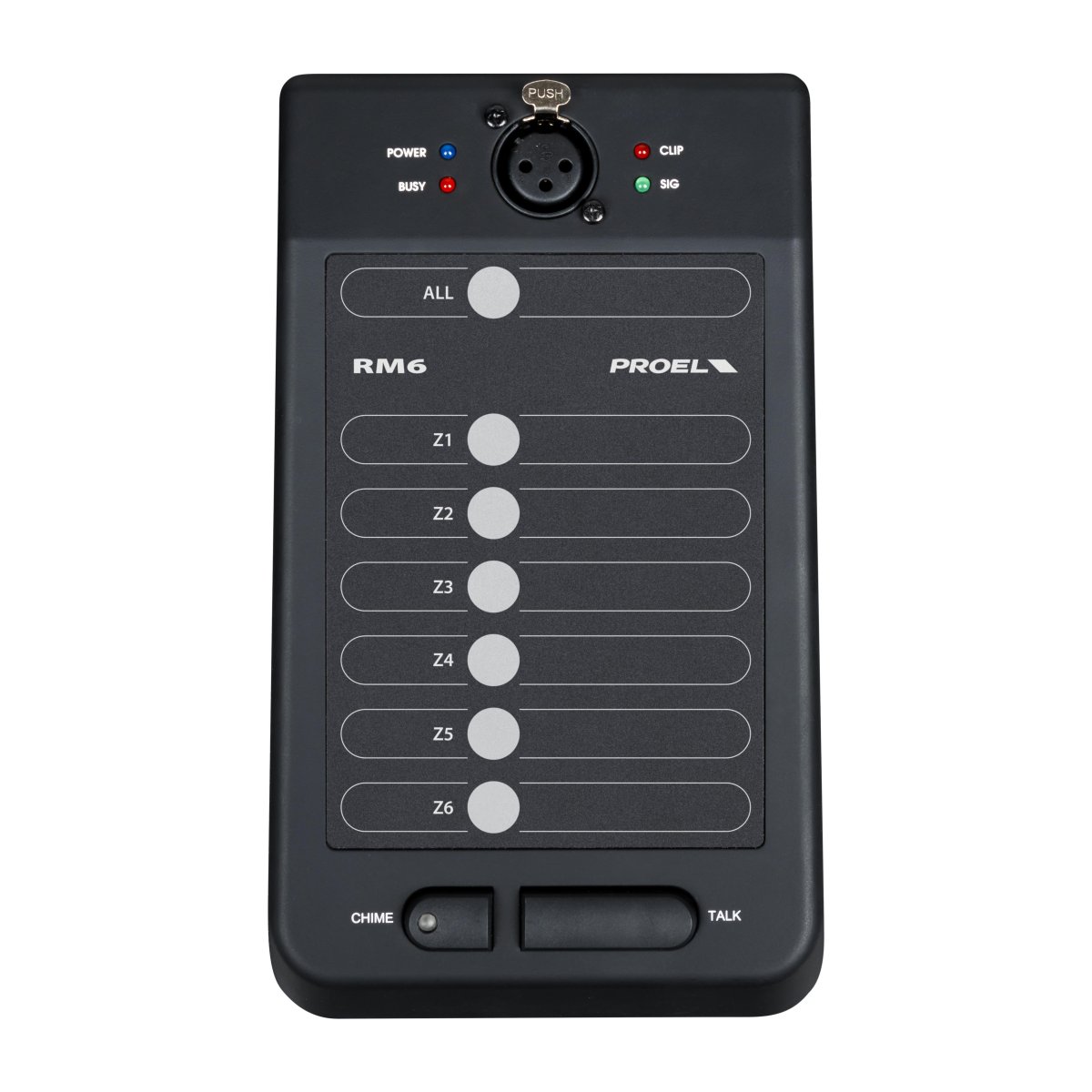

ALL key for selecting all zones at the same time
Zone keys for selecting each single zone or groups of zones
TALK key for making the announcement
LED indicators
CHIME key to activate / deactivate the attention tone

specifiche tecniche

Model	RM6

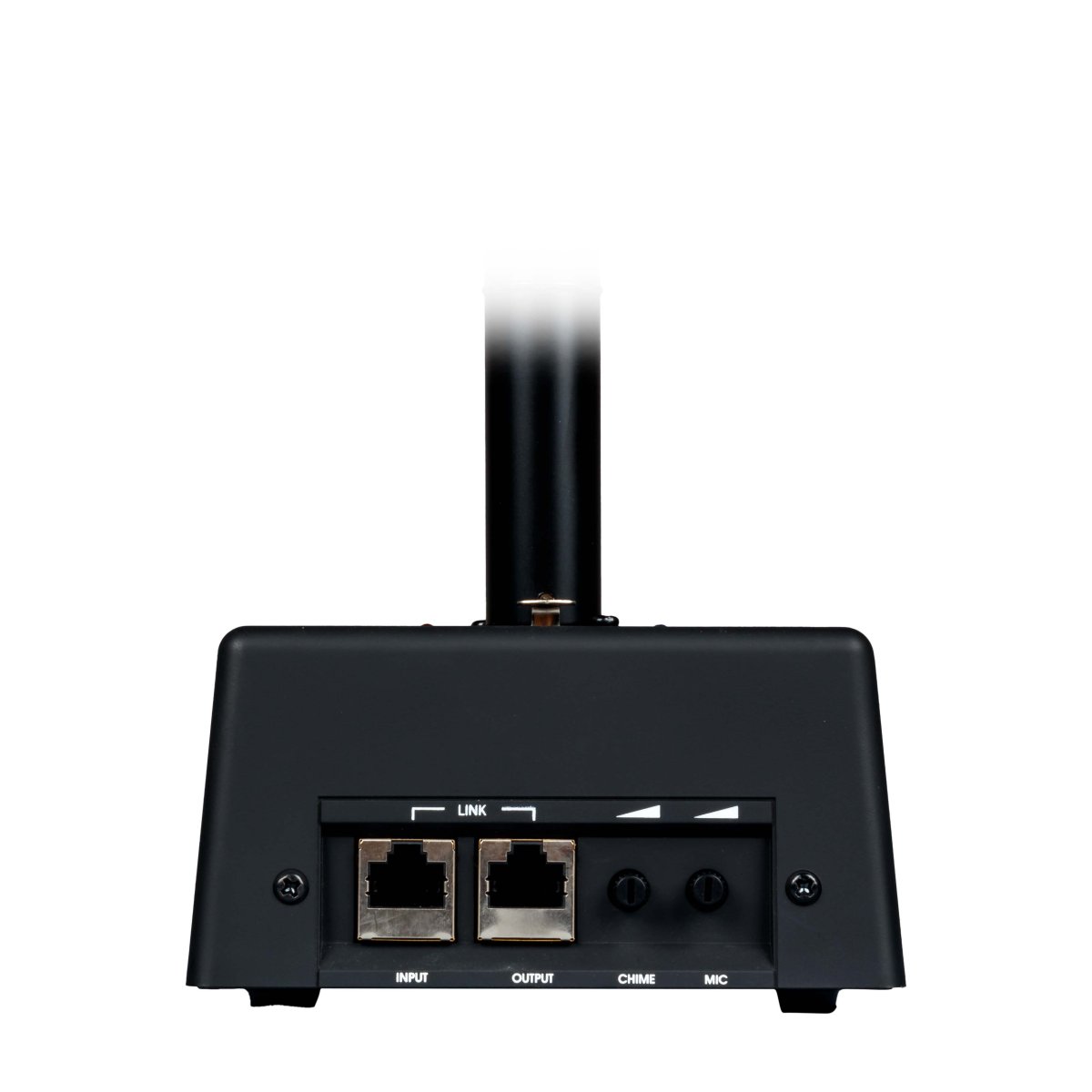

Connectors	1x MICROPHONE GOOSENECK (supplied) 2x RJ45 LINK (INPUT / OUTPUT)
Controls	ALL ZONES BUTTON 6x ZONE BUTTONS 1x CHIME BUTTON 1x CHIME LEVEL 1x TALK BUTTON 1x MIC LEVEL
Frequency response	60Hz -18KHz (-3dB)
Distortion (THD)	< 0.5% (@ Pnom 1KHz)
S/N Ratio	MIC: ≥70dB
Operating temperature	0 ÷ +45°C
Power Supply	+/-15VDC (RJ45)
Power Consumption	3 W
Dimensions (WxHxD)	120 x 66 x 198 mm
Weight	0.5 Kg
